evoBuild Foamed Asphalt

evoBuild Foamed Asphalt is a cold mix asphalt containing up to 95% recycled materials, reclaimed fillers/additives, bitumen, cement, and water. It can reduce the carbon emissions associated with asphalt production and laying by a minimum of 40% when compared with conventional hot mix materials. As such, it’s known as evoBuild Circular Foamed Asphalt 40 R95.

Engineered for high workability, the cold mix asphalt can be immediately placed and compacted on site, or stockpiled for later use. We’ve also designed and manufactured the foamed asphalt in accordance with ISO 9001 and in compliance with Specification for Highways Work Clause 948, TRL Report 611, and more.

Please contact our team to learn how to apply evoBuild Foamed Asphalt to your road or infrastructure construction project.

What applications can evoBuild Foamed Asphalt be used for?

evoBuild Foamed Asphalt can be used in a variety of transport and infrastructure applications.

Transport applications of evoBuild Foamed Asphalt

• Major and local highways
• Lorry and car parks
• Airports, both civil and MOD
• Footways and cycleways

Infrastructure applications of evoBuild Foamed Asphalt

• Ports
• Rail
• Industrial and commercial
• Housing developments
• Haunching and trenches

Benefits of evoBuild Foamed Asphalt

From cutting carbon emissions by 40% as a minimum to increased productivity and workability, evoBuild Foamed Asphalt delivers considerable benefits to any application.

• Boosts carbon savings

  evoBuild Foamed Asphalt requires less energy to manufacture than conventional asphalt, cutting carbon emissions by a minimum of 40%. It’s also manufactured and installed to SHW Series 900, Clause 948 and supported by PAS 2080, a global standard for carbon management in buildings and infrastructure.

• Reduces hazard exposure

  The low production temperatures needed to manufacture evoBuild foamed asphalt greatly reduce fumes, odours, and steam emissions. This minimises the risk of burns from materials and offers a generally safer and more comfortable working environment for operatives and road users.

• Enhances workability

  evoBuild foamed asphalt can be immediately placed and compacted on site, or it can be stockpiled for later use, extending working times and ensuring continued supply.

• Increases productivity

  With this cold mix asphalt, material curing times are reduced, enabling earlier trafficking, increased outputs, and reduced programme durations. All lead to less disruption for road users.

• Promotes circular economy

  Realising value from existing pavement materials, evoBuild foamed asphalt reduces waste and promotes a more circular economy.

• Reuses hazardous waste

  evoBuild Foamed Asphalt encapsulates tar-bound planings, allowing for their safe reuse in carriageway construction. This avoids substantial fees associated with transporting and disposing of hazardous waste at regulated landfill sites.

How evoBuild Foamed Asphalt is made

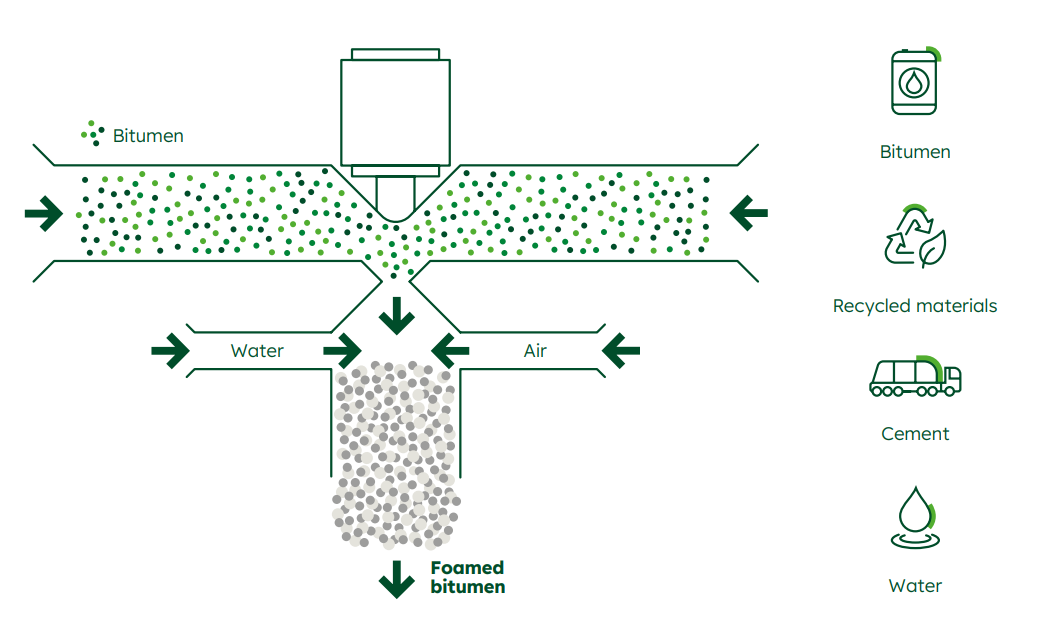

We manufacture the asphalt mix by injecting water and air into hot bitumen under high pressure. This causes the bitumen to foam, increasing its volume and decreasing its viscosity, allowing the effective coating of aggregate.

The recycled materials that can be added to the mix include:

• Recycled asphalt planings (RAP), commonly found in sustainable road construction and maintenance
• Tar-bound planings
• Excavated asphalt
• Crushed concrete
• Reclaimed granular sub-base

evoBuild Foamed Asphalt standards and compliance

evoBuild circular Foamed Asphalt is designed and manufactured in accordance with ISO 9001. It’s also compliant with:

• Specification for Highways Works Clause 948
• TRL Report 611
• CD 266 Design for New Pavement Construction
• BS 9228 For Recycling of Roads

About the evoBuild range

evoBuild is our global brand for low carbon and circular products, with all products in the range low carbon, circular, or both. Through evoBuild, we’re leading the construction industry towards a more circular economy, as well as progressing towards net-zero targets.

evoBuild Foamed Asphalt FAQs
